Teac Tascam Reel To Reel Tape Recorders

Year
Model
Ad
Unit in Museum collection
Specifications

1992 to 2004

Tascam BR-20T

2 track mastering recorder with center track time code. Tascam rep says this was the last analog reel to reel tape recorder to be manufactured by Tascam

1992 ad for the Teac Tascam BR-20T two track mastering reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection Museum
Teac Tascam BR-20T two teack mastering with Time Come sync professional reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection



  • Freq Response 35 - 22,000 cps @ 7.5
  • Signal to Noise 60 db
  • Speed  7.5 & 15
  • Motors  3
  • Reels  10.5"
  • Timing accuracy  .01%
  • Weight  62 lbs
  • Price $4,000.00

2 track mastering deck specs

Operation Manual

Service Manual

A reminder that the prices listed are what the item originally sold for in the year it was released.

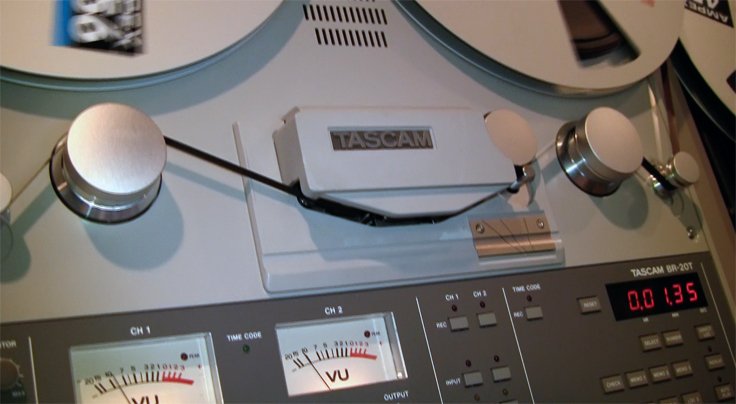

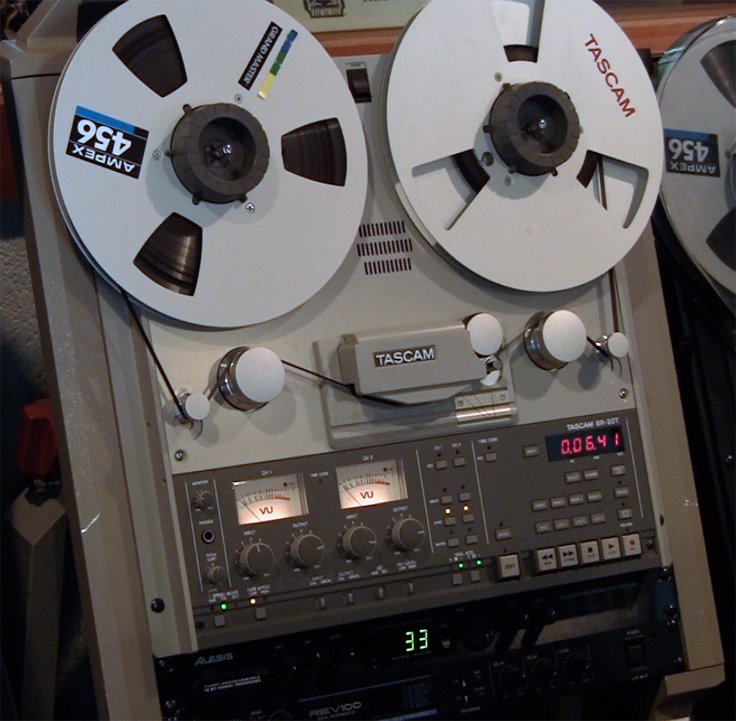

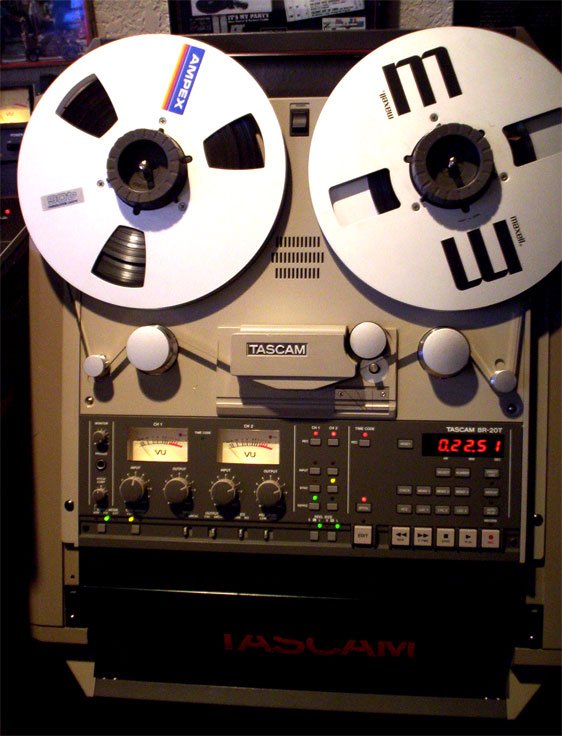

Teac Tascam BR-20T two teack mastering with Time Come sync professional reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection

Brochure cover  for the Teac Tascam BR-20T two track mastering reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection Museum

In 1992, the BR-20T was released, and was to be the last reel to reel recorder Tascam made. It was in production up to around 2004.
Parallel I/O port for connection to SMPTE/EBU based synchronizers/controllers
Balanced +4 dbm inputs/outputs for professional connections
Remote transport start and stop via the fader control of suitably equipped mixer
3-point Memory, entered either 'on the fly' or via Select and Number features
Repeat playback over the desired segment of the tape
5 point auto locator, return to zero, locate to three memo points and direct locate
Spool mode for uniform tape pack
Maximum +/-12% speed variation both in record and playback
Output/meter source selector switch for each channel source - Tascam

Specs for the Teac Tascam BR-20T two teack mastering with Time Come sync professional reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection

1992 ad for the Teac Tascam BR-20T two track mastering reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection Museum 1992 ad for the Teac Tascam BR-20T two track mastering reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection Museum  1992 ad for the Teac Tascam BR-20T two track mastering reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection Museum 1992 ad for the Teac Tascam BR-20T two track mastering reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection Museum     1992 UK ad for the Teac Tascam BR-20T two track mastering reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection Museum

2004 ad for the Teac Tascam BR-20T two track mastering reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection Museum  1992 UK ad for the Teac Tascam BR-20T two track mastering reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection Museum

Teac Tascam BR-20T two teack mastering with Time Come sync professional reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection   Teac Tascam BR-20T two teack mastering with Time Come sync professional reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection    Teac Tascam BR-20T two teack mastering with Time Come sync professional reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection  Teac Tascam BR-20T two teack mastering with Time Come sync professional reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection   Teac Tascam BR-20T two teack mastering with Time Come sync professional reel to reel tape recorder in the Reel2ReelTexas.com vintage recording collection


Many of the photos below have been sent to us from a variety of sources. If any of them are yours and we need to credit you or remove them, please let us know. Thank you!



Go to the company's history
